   Home      BW Technologies
 GasAlertMicro 5
  Five-Gas Detector
H2S, CO, O2, SO2, PH3, NH3, NO2, HCN, Cl2, ClO2, O3, and combustibles


Providing protection from up to five potential atmospheric hazards including oxygen, combustible and toxic gases, GasAlertMicro 5 is unparalleled in its versatility, capability and overall value. BW Technologies by Honeywell's newest addition to its water-resistant line of portable gas detectors has transformed the market with its matchless array of features.

Continuously monitoring and displaying concentrations of up to five gases, the compact and lightweight GasAlertMicro 5 was designed and engineered with an extensive host of applications in mind.



Features

  • Integral concussion-proof boot
  • Optional integral motorized pump option for remote sampling
  • Powered by three AA alkaline batteries or a hot-swappable rechargeable battery pack
  • Triple alarms (audible, visual and vibrating)
  • Multi-language support in English, French, German, Spanish and Portuguese
  • Large, user selectable backlit LCD
  • Four alarm levels: Low, High, TWA and STEL
  • Compatible with MicroDock II Automatic Test and Calibration Station
  • Datalogging models store and recall event information
  • Wide range of user selectable field options including password protection, safe and stealth modes.

Self-Tests

  • Full function self-test confirms sensor, battery and circuitry integrity and audible/visual alarms on activation







GasAlertMicro 5 PID
  Five-Gas Detector
VOCs (PID), H2S, CO, O2, SO2, PH3, NH3,NO2, HCN, Cl2, ClO2, O3, and Combustibles






Protect Yourself

  • Smaller and over 50% lighter than competitive instruments
  • Water-resistant design in an integral concussion-proof enclosure
  • Continuous LCD shows simultaneous gas concentrations for five gases
  • 0 - 1000 ppm measurement of VOCs (Volatile Organic Compounds)
  • Integral motorized pump option for remote sampling
  • Two power options: AA alkaline or rechargeable hot-swappable battery pack
  • Provides 95 dB alarm tone and two bright wide-angled alarm bars
  • Equipped with internal vibrating alarm for high noise areas
  • Multi-language support in English, French, German, Spanish, and Portuguese
  • Three backlight options: standard- activates in low light (auto), in alarm (auto) and reactivates on-demand; alarm only- activates in alarm conditions and reactivates on-demand; stealth mode
  • Four alarm levels: instantaneous Low and High Alarm for all gases; TWA (time-weighted average) and STEL (short-term exposure limit) for VOCs and toxic gases
  • Simple automatic calibration procedure; compatible with BW Technologies by Honeywell MicroDock II automatic test and calibration station
  • Records TWA, STEL, and maximum exposures to gas and displays readings on command
  • User selectable field options include: PID correction factor, language selection, confidence beep, span level, set TWA/STEL calculation choice, set calibration due date, pass code protection, latching alarm, 'SAFE' display function, stealth mode, and selectable ppm resolution for some gases (e.g. SO2 0.1 ppm)
  • Full function self-test of: sensor, battery and circuit integrity; and audible/visual alarms





GasAlertMicro 5 IR
  Five-Gas Detector
CO2 (IR), H2S, CO, O2, SO2, NH3, O3, and Combustibles




Providing protection from up to 5 potential atmospheric hazards including oxygen, combustibles and toxic gases, this portable gas detector is unmatched in its versatility.
Features & Benefits
  • Monitors H2S, CO, O2, SO2, PH3, CI2, NH3, NO2, HCN, CIO2, O3 and combustibles
  • Integral concussion-proof boot
  • Triple alarms (audible, visual, vibrating)









H2S, CO, O2 and combustibles
Multi-Gas Detector










With flexible power options, the GasAlertQuattro is always ready. The graphic LCD displays easy to identify icons that indicate operational information, such as bump test and calibration status for simplified onsite auditing. IntelliFlash provides continuous visual confirmation of detector operation and compliance. Suited to a wide range of industrial applications including confined space entry.

Additional GasAlertQuattro features:


• Interchangeable rechargeable battery pack or alkaline pack with 3 AA batteries
• Comprehensive datalogging and event logging capacity
• IntelliFlash verifies operation and compliance to user and supervisors from up to 20 ft. / 6.1 m
• Field-proven SureCell sensors offer an unprecedented performance in even the harshest environments.


Features & Benefits

  • Compact and lightweight design makes it comfortable to wear
  • Simple one-button operation for ease of use
  • Compatible with MicroDock II














H2S, CO, O2 and LEL
Multi-Gas Detector









Multi-gas Made Easy

The GasAlertMicroClip XT provides affordable protection from atmospheric hazards. Its slim and compact design makes it easy to wear, allowing workers to focus on the job at hand without feeling weighed down. With easy one-button operation, workers make fewer operational errors and training time is reduced. The GasAlertMicroClip XT uses and easy-to-navigate interface common to previous generation gas monitors from BW technologies. This multi-gas monitor provides continuous visual confirmation of detector operation and compliance with the IntelliFlash™ feature. The GasAlertMicroClip XT is fully compatible with BW Technologies by Honeywell MicroDock II automatic test and calibration system.

  • Incredibly thin and lightweight, making it comfortable to wear
  • Multi-gas versatility with one-button simplicity
  • Continuous visual compliance with IntelliFlash
  • Extraordinarily low cost of ownership
  • Easy to test with MicroDock II compatibility
  •










    H2S, CO, O2 and combustibles
    Multi-Gas Detectors




    Go the distance, and save

    GasAlertMax XT II is the smart, simple, economical way to compliance. Workers feel safe and incidents are minimized so everyone will be able to do more. That means savings realized from business continuity and productivity.

    Simple operation, with SmartSample pump.
    GasAlertMax XT II reliably monitors up to four hazards and combines straightforward one-button operation with our robust, motorized pump for intelligent, remote sampling, ideal for confined spaces. The GasAlertMax XT II is fully compatible with MicroDock II automated test and calibration system.
















    H2S, SO2, CO or O2
    Single Gas Detector




    Up to three years of continuous
    maintenance-free protection


    As the world’s most popular and widely used zero-maintenance gas detector, the GasAlertClip Extreme offers continuous, reliable protection. Available in two year or three year versions, this single gas detector requires no calibration, sensor replacement, battery replacement, or battery charging. Compatible with the MicroDock II automatic test system, the simplicity of the GasAlertClip Extreme combined with minimal training requirements and negligible maintenance costs, make the GasAlertClip Extreme one of the most cost-effective PPE solutions for facility workers and on-site contractors.

    • Durable, reliable and easy to use with no downtime
    • Record keeping is accurate and easy with automatic event logging
    • Exceptionally low cost of ownership
    • Compatible with BW Technologies by Honeywell's MicroDock II automatic test station
    • Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms
    • Bright wide-angled visual alarm bars
    • Built-in concussion-proof boot
    • Water-resistant

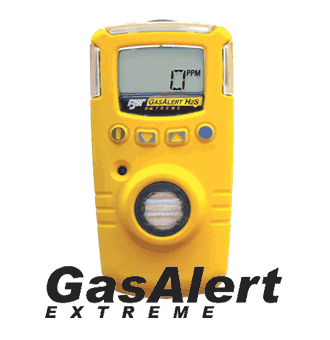

    H2S, CO, O2, SO2, PH3, CI2, NH3, NO2, HCN, ETO, ClO2, O3, NO
    Single-Gas Detectors





    Long-term solution

    Designed with durability and comfort in mind, the GasAlert Extreme reliably monitors for any single gas hazard within its wide range of available toxic gas models. With easy on/off operation, this single gas detector offers extended longevity with a two year field-replaceable battery and sensor. Calibration is a simple automatic procedure and is compatible with BW Technologies by Honeywell's MicroDock II automatic test and calibration system. A wide range of user options, multi-language display and datalogging functionality make the GasAlert Extreme an ideal solution for many applications.

    • Direct, real-time readings on large LCD
    • Operates through consecutive shifts—exceptional battery run-time
    • Secure and accurate history with datalogging option
    • Simple automatic calibration procedure; compatible with BW Technologies by Honeywell MicroDock II automatic test and calibration station
    • Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
    • Bright wide-angled visual alarm bars
    • Built-in concussion-proof boot
    • Water-resistant

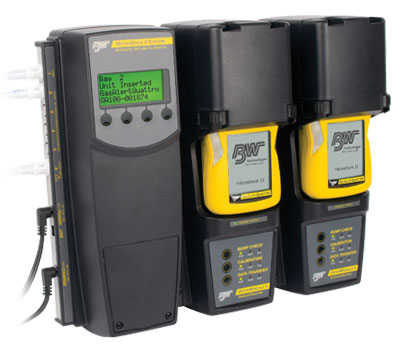

    automated instrument docking station





    The most cost effective way to manage the calibration and bump testing of BW Technologies by Honeywell portable gas detectors is through the MicroDock II automated test and calibration system. Fully portable and easily expandable, the MicroDock II requires no computer and provides simultaneous management of up to ten modules. Minimize expenses and maximize productivity with the MicroDock II.

    Features & Benefits
    • Quick and easy compliance - automatically maintain accurate records
    • Automatic bump testing, calibration, record keeping and charging
    • One base station with one AC outlet supports up to six modules to suit your application
    • Verifies proper performance of detectors
    • Reduces maintenance costs
