PORTABLE FLUE GAS ANALYSER

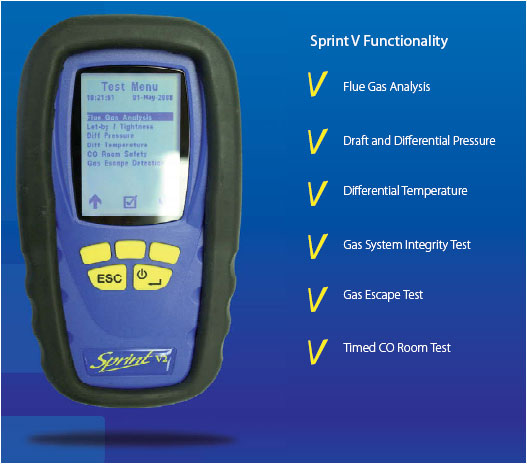

Sprint V Flue Gas Analyser

Using the latest technology the Sprint V range of multifunction flue gas analysers allow heating engineers to test boilers to optimise servicing and efficiency and to assess the integrity and safety of gas installations and heating systems.

Sprint V products can offer up to six functional tests as follows:

Flue Gas Analysis for combustion efficiency assessment
Draft and Differential Pressure measurement
Differential Temperature measurement for flow and return
Room CO test to assess the safety of installed appliances
Gas system pressure integrity test to test for leakage
Gas escape test to locate pipe-work leaks.

All Sprint V products measure flue gas temperature, oxygen and carbon monoxide and calculate CO₂, Excess Air and Combustion Efficiency. In most regions they also measure CO/CO₂ ratio which is used to determine the need for servicing. All include the room CO build up test used to check for faulty appliances. All versions can output reports to Sprinter - a hand held IR communications accessory printer.

Currently available Sprint V versions are:

V1 - Basic unit with functions as listed above
V2 - Full function unit with differential temperature and differential pressure, USB communications to PC and optional gas escape probe
V3 - As V2 with Bluetooth wireless communications to a PC or compatible PDA devices
V4 - As V2 with the addition of a nitric oxide (NO)sensor to determine NO and NO_x levels
V5 - As V4 with Bluetooth wireless communications to a PC or compatible PDA devices

Tempest 50 (CO, O2, NO, T°, Pressure)

The Tempest 50 is a rugged, reliable emissions monitoring unit that has been designed for a tough life with heating professionals. Its wipe-clean touch panel allows you to achieve the results you need quickly and simply, without the risk of moisture or dust damaging the contents.

Several options are available with the instrument including different sensors and data output options which can be specified prior to delivery or can be added later.

CO, O₂, temperature, pressure, optional NO

Tempest 100 (CO, O2, NO, T°, Pressure, No2, SO2, H2S, HCl)

The Tempest 100 offers everything the Tempest 50 does with the option of several different sensors and data output options which can be specified to measure exhaust gases, pressure and temperature requirements. The single function buttons provide quick and easy snap-shot indicators; whilst more advanced logging requirements can be easily configured.

CO, O2, NO, pressure, temperature, Optional NO2, SO2, H2S, HCl

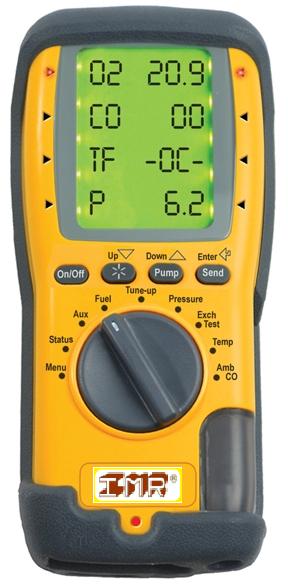

1-3 Gases Handheld Flue Gas Analyser

Measures: O2,CO and NO; draft, Flue-gas temperature

Calculates: NOx, CO2, CO corrected, combustion efficiency, excess air, CO/CO2-ratio

Comes with gas-sampling probe, condensation trap, battery, IR interface

2-4 Gases Compact Flue Gas Analyser

Measures: O2, CO, NO, NO2 (SO2); draft/pressure; soot; Flue-gas and ambient temperature

Calculates:CO2, combustion efficiency, heat losses, excess air,CO corrected

Comes with gas-sampling probe, condensation trap, rugged case, battery

Built-to customer specification

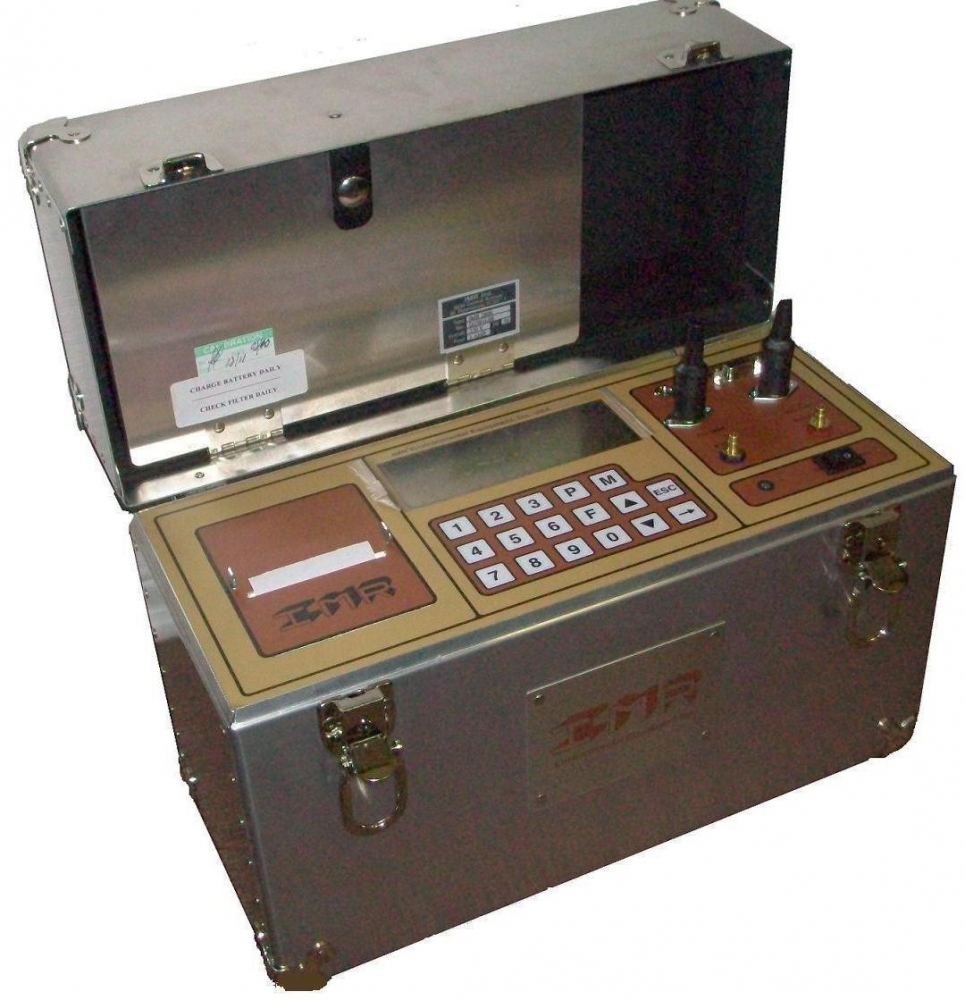

3-4 Gases Flue Gas Analyser (CO2 included)

Measures: CO2 (NDIR), O2, CO, NO, NO2 (SO2); draft/pressure;soot; Flue-gas and ambient temperature

Calculates:Combustion efficiency, heat losses, excess air, CO corrected

Comes standard with gas-sampling probe, condensation trap, rugged case,battery, printer, CO-bypass, serial interface, memory, 12VDC

2 x CO Gases Flue Gas Analyser

- Measures: O2, CO-low (in ppm), CO-high (in %), draft/pressure; soot; Flue-gas and ambient temperature

- Calculates:CO2, combustion efficiency, heat losses, excess air,

CO corrected

- Comes standard with gas-sampling probe, condensation trap, rugged case,battery, printer, Automatic CO-bypass-switch, serial interface, memory, 12VDC

4-6 Gases Flue Gas Analyser

Measures: O2, CO, NO, NO2, SO2, HC (H2S); draft/pressure; soot;Flue-gas and ambient temperature

Calculates:CO2, heat losses, excess air

Comes standard with gas-sampling probe, condensation trap, rugged case,battery, printer, serial interface, memory

4-6 Gases (CO2) Flue Gas Analyser

Measures: O2, CO, CO2, NO, NO2, SO2, HC; draft/pressure; soot; Flue-gas and ambient temperature

Calculates: Heat losses, excess air

Comes standard with gas-sampling probe, condensation trap, rugged case,battery, printer, serial interface, memory

CONTINUOUS FLUE GAS MONITORING SYSTEM

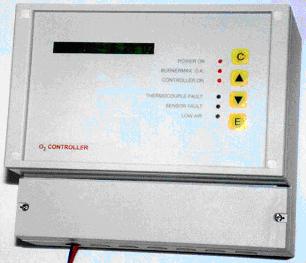

1-8Cell Continuous Flue Gas Analyzer

- Measures: O2, CO, CO2, NO, NO2, SO2, H2S, HC, Temperature
- Comes with analog output, alarm relays, rugged wall mounted enclosure
- Built-to customer specifications
