Triple Plus+ Multigas Detector


Triple Plus+ is the latest generation of the respected "Triple" family of toxic, oxygen and flammable gas detectors. With over 90,000 units sold to oil and gas, chemical, utility and manufacturing companies worldwide, their combination of ruggedness, reliability, ease of use and sensor flexibility has set the standard for multigas portables.



Overview

Today's TriplePlus+ builds on this pedigree by inclusion of unique LIBRA lithium-ion battery technology and the option of infrared (IR) sensors for the measurement of flammable hydrocarbons or carbon dioxide.

Intrinsically safe, the Triple Plus+ provides enhanced facilities for safety and detector fleet managers including selection of flammable gas correction factors (so one unit can be used in several locations across a site) and annotation of the data file with user names and site names selected from pre-configured files in the unit.








triple_plus_prod_img_2          triple_plus_prod_img_3



Clear and unambiguous

  • Piercing 85dB alarm at 1m - gives you confidence in the status of your Triple Plus+, and the environment you're working in
  • Vivid LED alarms with top visibility
  • Confidence blip, low battery and TWA warnings
  • Timed data logging with 100-hour capacity



Simple to customise

  • Wide range of electrochemical oxygen and toxic gas sensors - allows you to create your optimum 4 gas Triple plus+
  • Available for diffusion, manual aspiration or pumped sampling
  • Interchangeable sensor modules
  • Comprehensive data logging with site and user names



Durable

  • TriaxTM casing will not crack or shatter when dropped - system integrity and operation assured
  • Unique internal design will resist the harshest treatment
  • Full buoyancy - makes recovery from water possible



Easy to maintain

  • Simple WindowsTM Software interface - user menus allow calibration with or without connecting to a PC
  • QuickCal for rapid calibration






Accessories

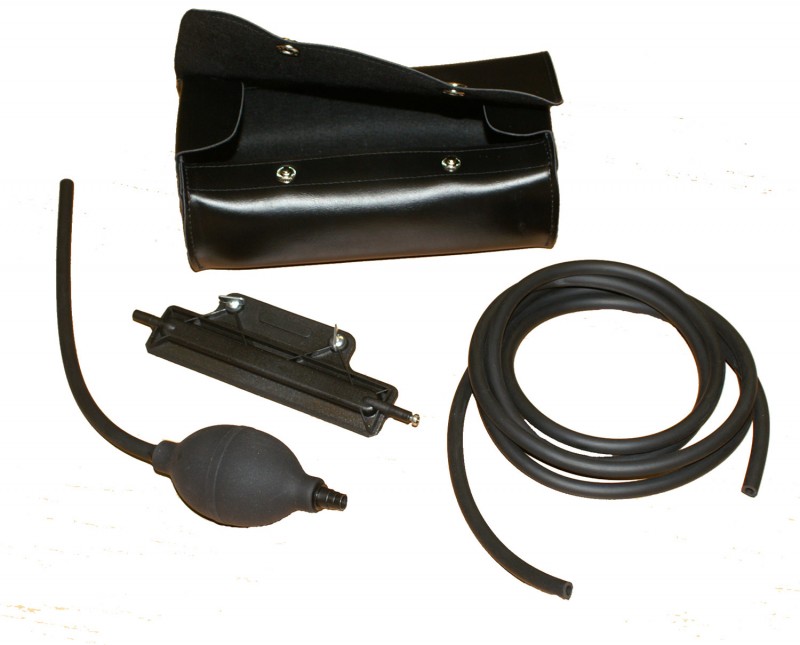

Aspirator Kit with Pouch

  • C01685
  • To enable manual sampling. Includes aspirator bulb, flow plate and 2m of standard sampling hose.





Charger/Interface II international without plug

  • C01440

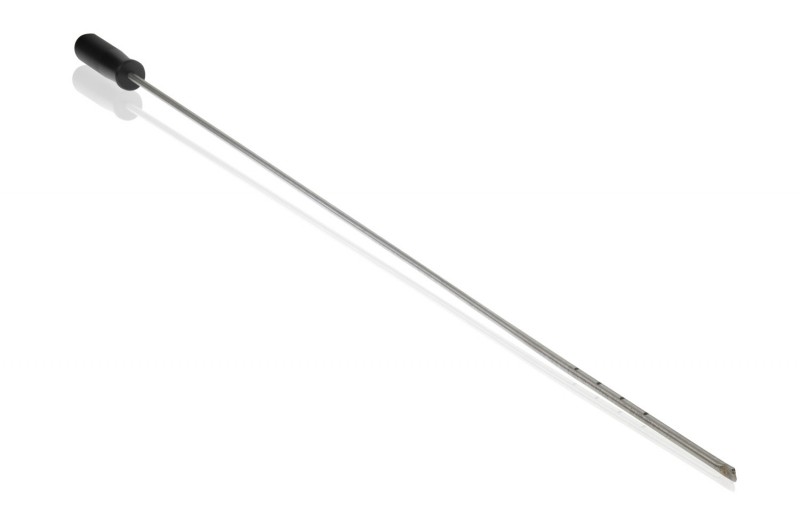

1 m Rigid Sample Probe

  • C01097
  • For sampling remotely eg into chambers during re-entry checks.


Telescopic Sample Probe

  • C01757
  • For sampling remotely eg into chambers during pre-entry checks. Extends from 85cm to 155cm.




Standard sampling hose

  • M04032
  • Supplied by the metre. Contact sales team for custom length requests.


In line water trap/particulate filter

  • FIL29001
  • Protects detector sensors from particles and moisture. Includes filter element.

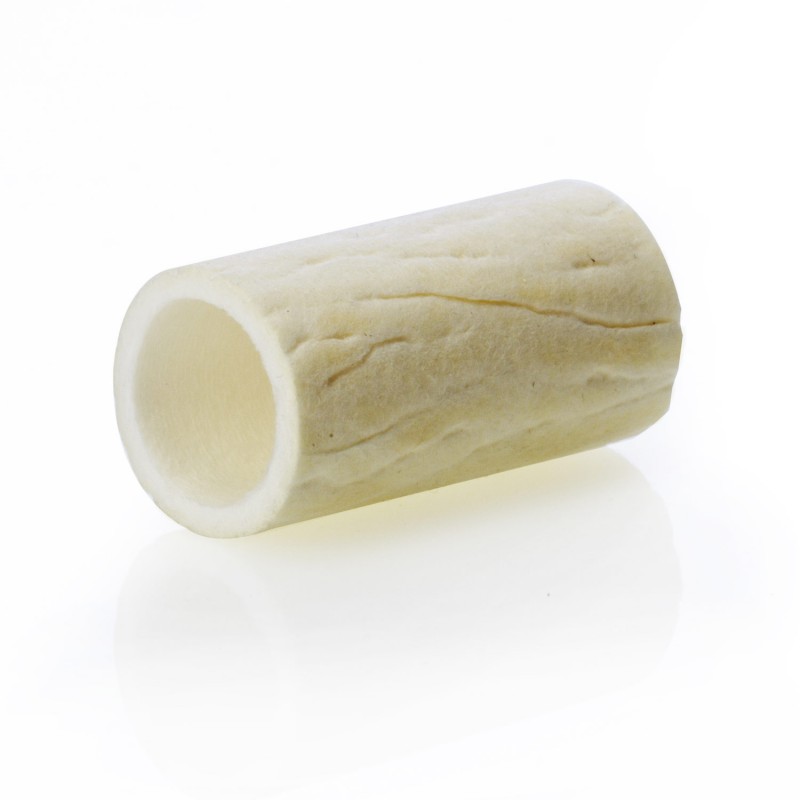

Replacement water trap filters

  • FIL99008
  • Replacement filter elements for FIL29001. (Minimum order 10 elements).

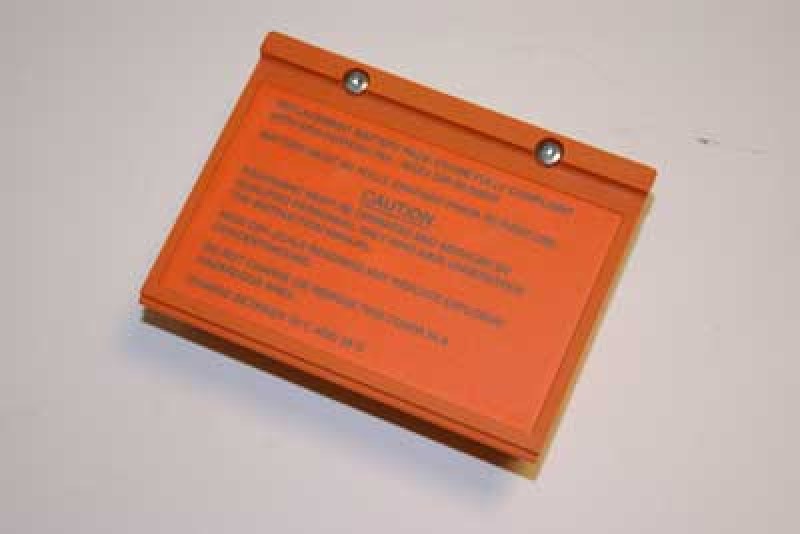

LIBRA Li-ion Battery Upgrade Kit

  • Upgrade kit for TriplePlus+ and TriplePlus IR units originally fitted with lead acid batteries.
  • Not compatible with original TriplePlus (units with a single battery compartment screw).

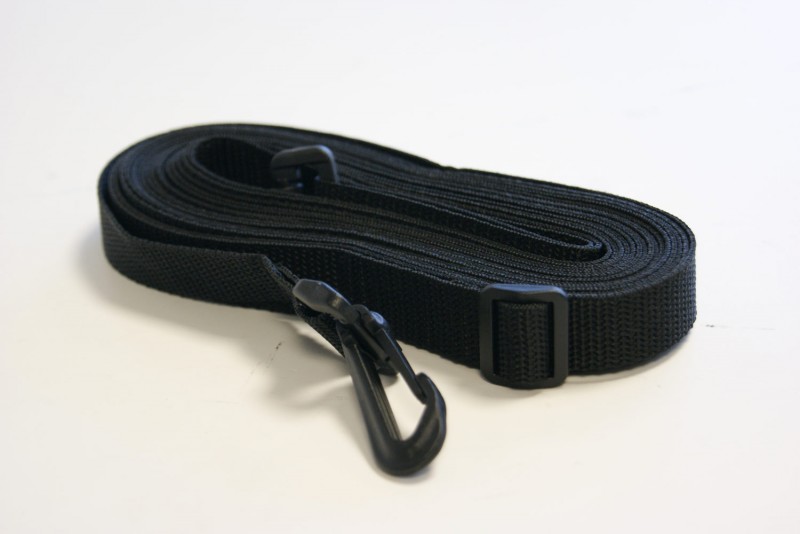

Six metre drop line

  • C03141
  • Six metre drop line for undertaking pre-entry checks with TriplePlus+.

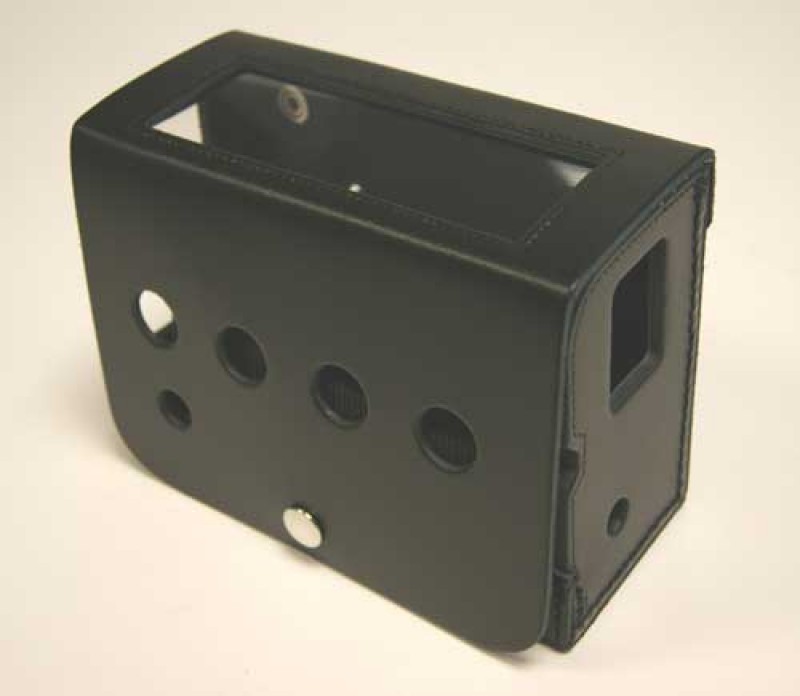

Carrying case and belt

  • C01007
  • Carrying base and belt.

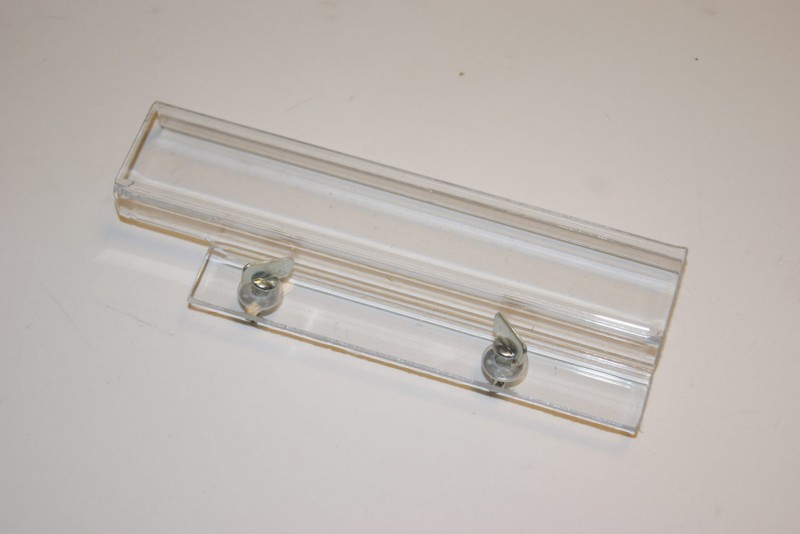

Baffle plate

  • C01325
  • Provides additional protection for sensor apertures in extreme conditions, for example by reducing splash and sand ingress.

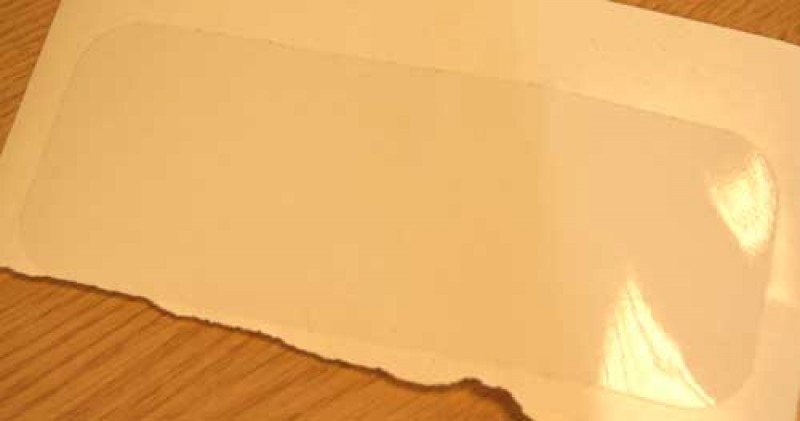

Top label protective film

  • M05809
  • Self adhesive film to provide extra protection to the keypad and display.

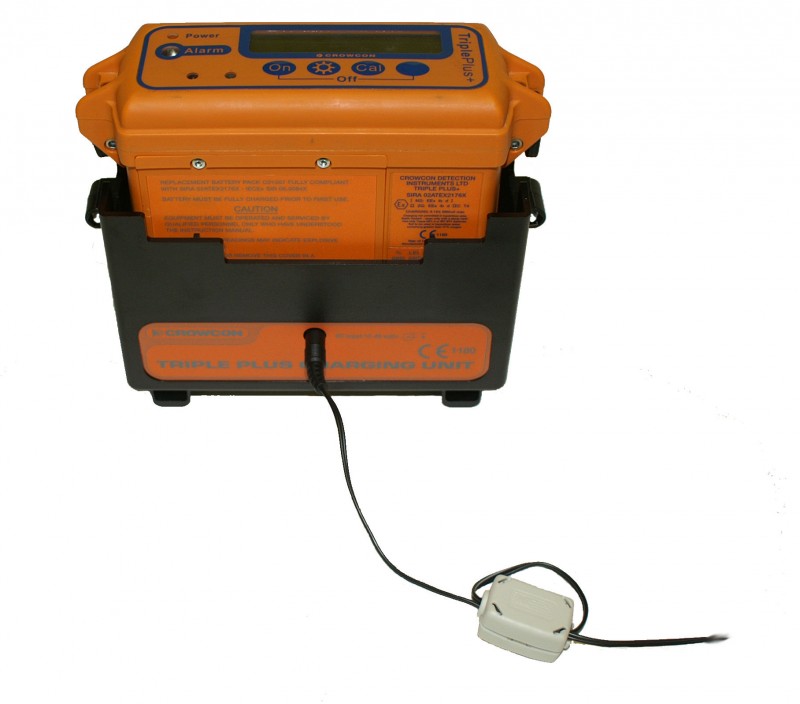

Drop-in charger

  • C011321
  • Charger with multi-region power supply (includes UK, EU, US, and Australian plug adaptors)

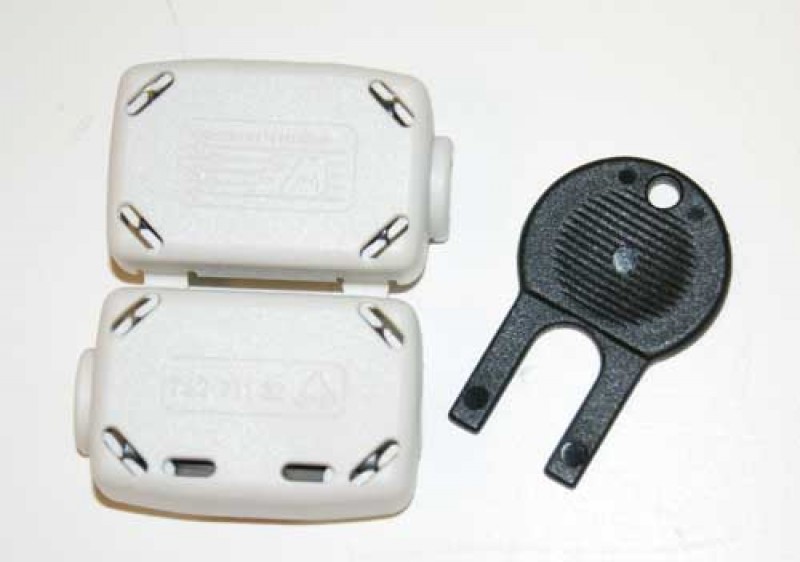

Ferrite for TriplePlus+ chargers

  • E01083
  • Fit when upgrading non-interface chargers to charge both lead acid and LIBRA battery TriplePlus+ instruments.
  • Note: A ferrite will already be supplied with every new LIBRA powered TriplePlus+ and with every spare LIBRA battery pack upgrade.

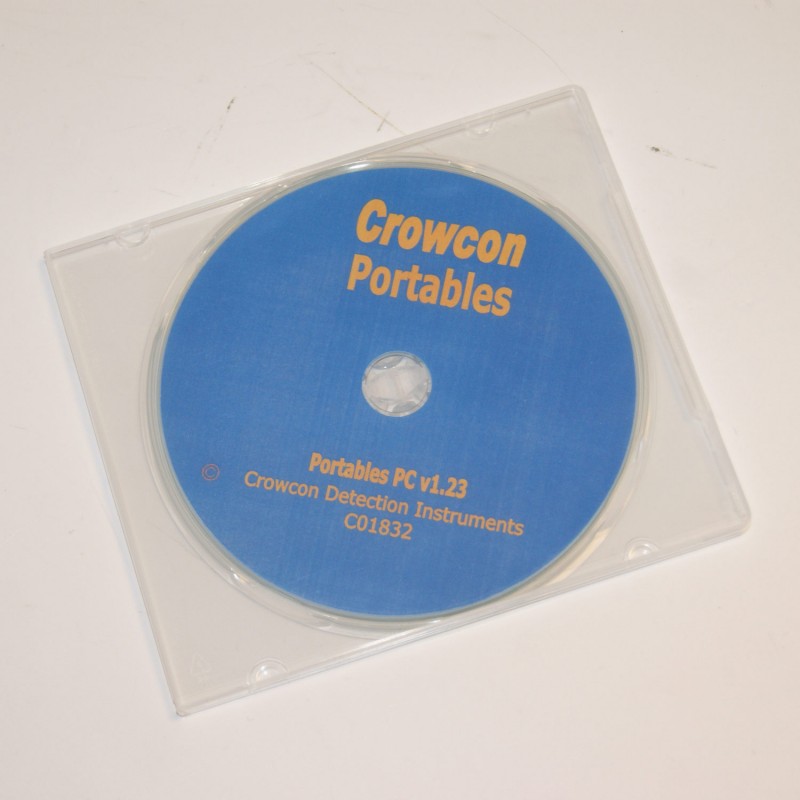

Portables PC Software CD

  • C01832
  • Enables data download, calibration and changes to instrument settings.
  • Requires interface charger (supplied separately).

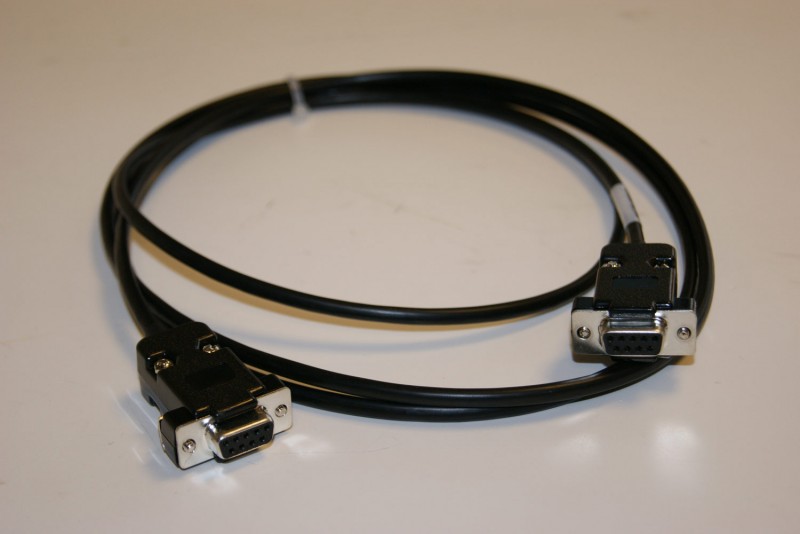

Computer lead for TriplePlus+ Interface

  • C01327
  • 9 way lead for connecting TriplePlus+ Charger Interface to a PC.

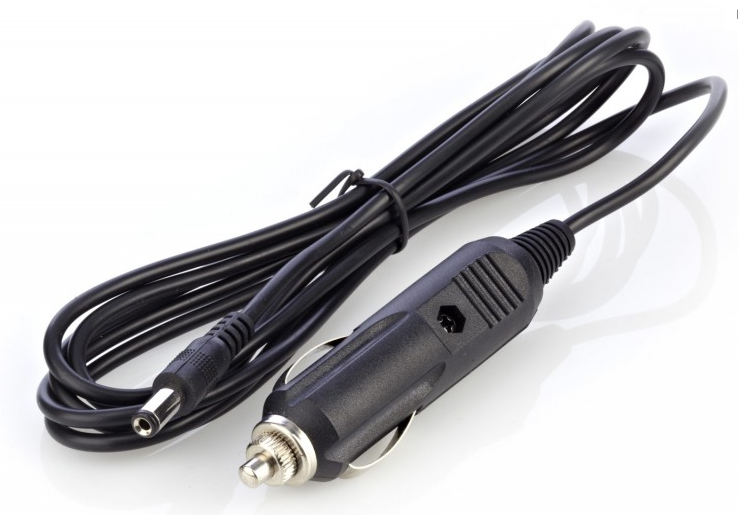

Vehicle Charging lead

  • C01296
  • For vehicle lighter socket. Use with charger cradle.

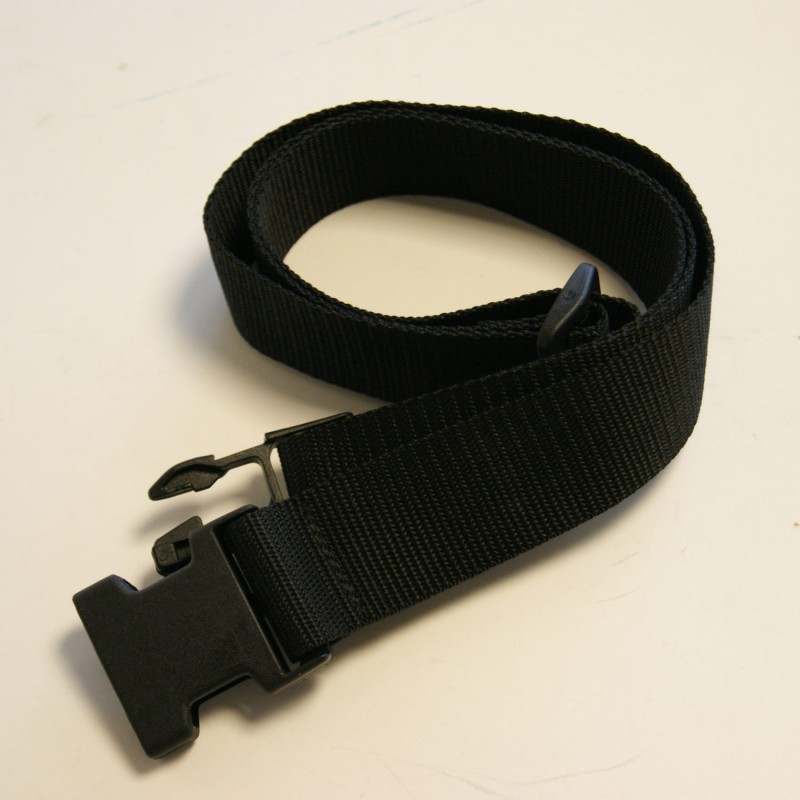

Waist belt

  • C01451
  • Waist belt
