Vortex

Overview

Vortex is available in four formats:

• Wall mounted (Vortex)
• 19″ rack mounted (Vortex rack)
• Panel mounted (Vortex panel) or
• Exd Flameproof (Vortex FP)

Channels and display

• 1 to 12 channels (including 3 for fire) – up to 12 devices can be monitored by reviewing just one control panel, saving time and manpower
• Each channel has 1 fault level and 3 alarm levels which can be combined in any pattern to trigger up to 32 output relays – flexibility built in, initially configured to suit your operational needs, then channels/alarms are easily customised by you if requirements change
• Can be factory set to your requirements. Then when in situ, can easily be configured to suit your needs using PanelsPro software
• Push buttons on front display – day-to-day operations are easily undertaken
• LED display panel lights – faults are easily seen and whole system can be checked at a glance

Installation and maintenance

• Modbus compatability – no extensive cabling required; cable connections within the unit are easy
• Space within units for access to cable terminals
• Uses industry standard communication links – simple to integrate into existing control systems
• Any adjustments are performed electronically – minimal maintenance and no drift from adjustable potentiometers
• Separate zones can be individually inhibited – you can work on specific areas without affecting the rest of the system
• Modular construction – replacement parts if required, which plug straight in

Compliance and reliability

• Validated to IEC 61508 (SIL 1) – demonstrates system dependability
• System monitors relays continuously – coil faults are identified immediately without input from you
• Internal battery pack* – power outs are not a problem. Internal battery pack continuously monitored for change levels and connection. System is operational at all times

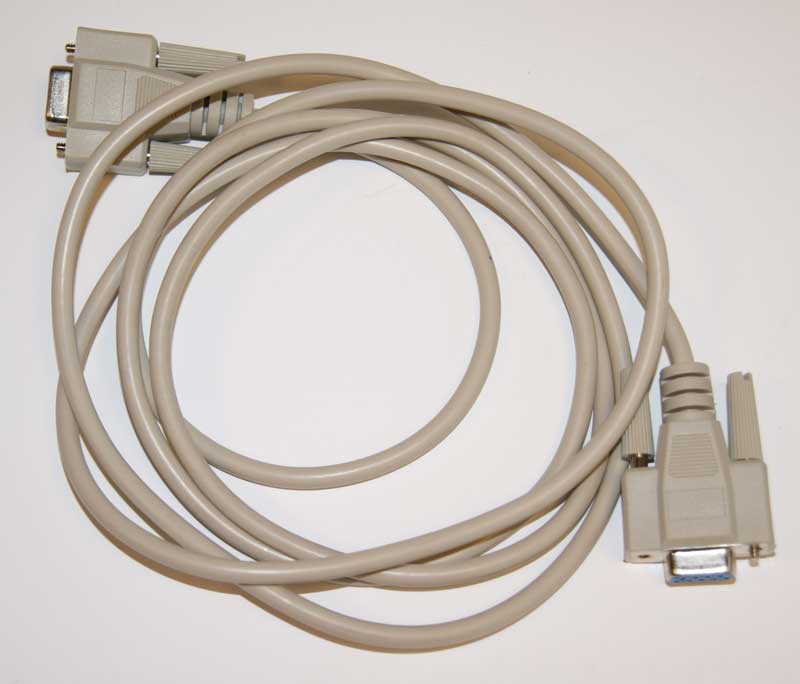

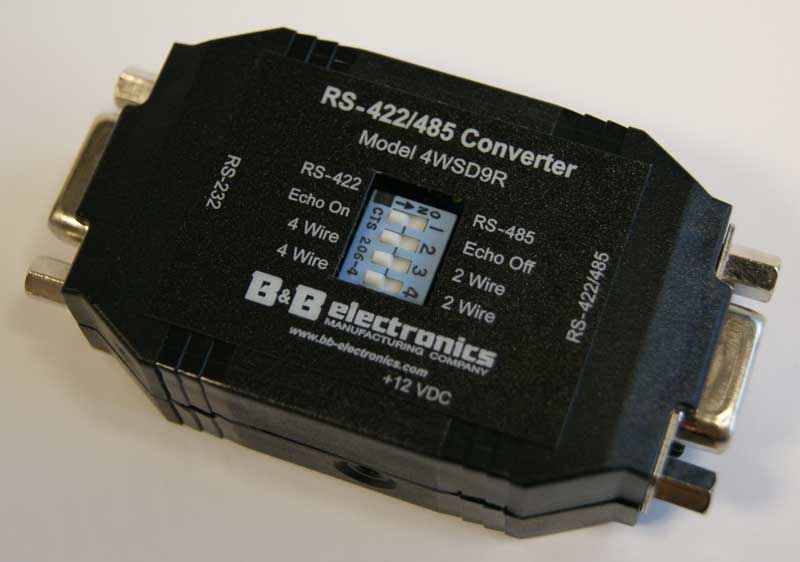

Accessories
